In the world of chemical fiber manufacturing, the hollow fiber spinneret plays a vital role in converting polymer solutions into fine, high-performance fibers. Whether used for producing filtration membranes, textiles, or advanced materials, this precision-engineered component determines the quality, structure, and performance of the final fiber. In this article, we’ll explore what a hollow fiber spinneret is, how it works, its types, materials, and the key factors that make it indispensable in modern spinning systems.

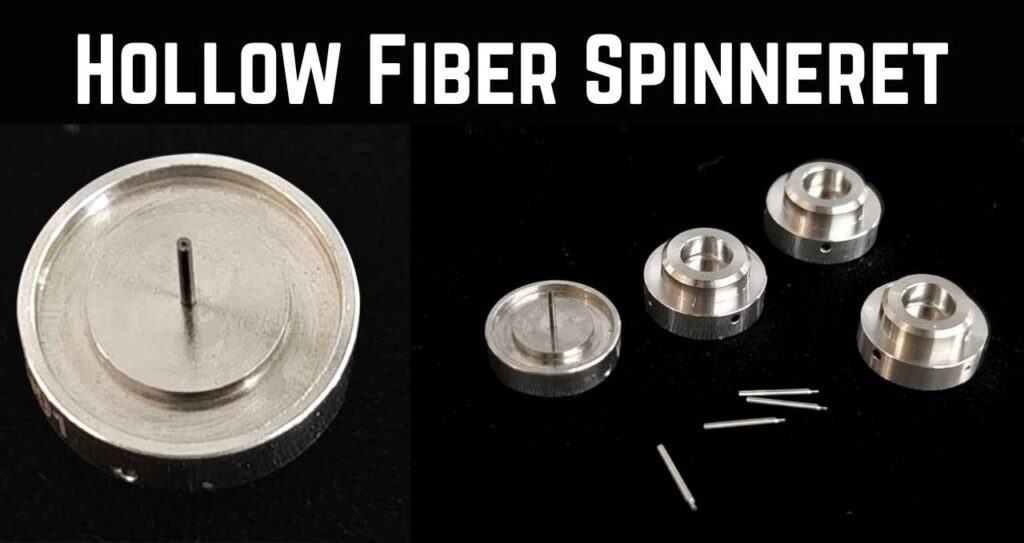

What is a Hollow Fiber Spinneret?
Hollow fiber spinneret is a precision nozzle used on hollow or tube fiber spinning machines from a melt or polymer dope. They are unlike the standard solid fiber spinnerets made in the form of concentrically built channels where both the bore fluid and the polymer dope are extruded simultaneously. The resulting product is a continuous filament having a hollow core, and the mechanical and functional properties are good.
It is where solid fiber and liquid polymer meet. Its precision engineering allows for constant extrusion by micro-scale pores, creating the fiber structure before it solidifies. Spinneret composition, shape, and size have direct effects on fiber wall thickness, porosity, and final performance which makes it a key element in hollow fiber spinning.
Working Principle of Hollow Fiber Spinneret
The hollow fiber spinneret process relies on a form of co-extrusion. The outer channel contains a solution of a polymer (known as the dope), and the bore fluid — the usual water, air, or other solvent flows through the inner needle. When both streams exit from the spinneret, they form a solidified continuous hollow filament.
The major steps of the process are:
- The dope of the polymer is transported along the annular gap of the spinneret.
- Bore fluid is pushed through the internal needle to form the hollow core.
- The mixture flow comes out from the spinneret as a nascent fiber.
- The fiber is moved through an air gap and into a coagulation bath in which it solidifies.
- Phase inversion occurs, which transforms the liquid polymer into a solid fiber.
The spinneret geometry, flow rate, viscosity, and temperature will determine the eventual resultant morphology and properties of the hollow fiber.
Types of Hollow Fiber Spinnerets
The hollow fiber spinnerets are mostly categorized depending on the spinning process and type of desired fiber properties. The most widely used ones in industry are explained below.
- Wet Spinning Spinnerets:
Used when the polymer is dissolved in a solvent. Bore fluid and polymer solution are introduced into a coagulation bath, where fibers are produced due to solvent exchange. These spinnerets are typically made of corrosion-resistant materials due to the chemical process nature.
- Dry Jet-Wet Spinning Spinnerets
During this process, the extruded fibers first experience a short air gap before they are immersed in the coagulation bath. Improved orientation of the fibers as well as surface structure control is achieved because of the air gap, thereby creating stronger and more evenly structured fibers.
- Melt Spinning Spinnerets
Here, the polymer does not dissolve but melts. Side-by-side co-extrusion of molten polymer and bore gas is then followed by cooling to produce hollow fibers. Because of the high temperature used, spinnerets of this type are made from hard stainless steel or other resistant alloys.
All types of spinnerets possess some characteristic design aspects, i.e., orifice diameter, channel length, and concentricity, which need to be precisely produced in order to make fiber quality uniform.
Materials Used in Spinneret Production
Material for hollow fiber spinnerets is chosen based on the spinning process and conditions. SUS316L, SUS630, and titanium alloys are the most commonly applied stainless steel grades because of their hardness, corrosion-resistance, and heat-resistance. Nickel alloys or hardened steel are utilized in some cases for the purpose of precision and durability.
High-precision manufacturing methods, such as electric discharge machining (EDM), laser drilling, and micro-milling, are used to manufacture the ultra-fine channels and smooth surface properties of the spinneret. Such manufacturing processes ensure concentration and uniformity of holes, a prerequisite for similarly sized hollow fibers.
Structure and Design of Hollow Fiber Spinnerets
The hollow fiber spinneret design is generally an exterior annulus and interior needle. The dope of the polymer is passed through the annular gap, and the bore fluid through the needle. The design may also be altered with the number of orifices and intricateness in the fiber structure.
Single-hole spinnerets are used for pilot scale and laboratory scale, and industrial production uses multi-hole spinneret plates with hundreds or thousands of capillaries. Hole shape i.e., diameter, taper angle, and surface finish — exerts controlling influence on fiber spun quality. A smoother inner surface decreases resistance to flow to supply uniform extrusion and fiber uniformity.
Applications of Hollow Fiber Spinnerets
Hollow fiber spinnerets are used in many industries since they can spin hollow-core, light, and high surface-area fibers. They are also very versatile and can be used in industrial, medical, and environmental applications.
- Water Filtration and Membrane Technology
Hollow fiber spinnerets are used in the manufacture of membranes to produce hollow fiber membranes for seawater desalination, ultrafiltration, and water filtration. The hollow structure is able to attain a staggering surface area of filtration, which is suitable for filtering out impurities from water to purify it and improve the quality of water.
Common applications are:
- Reverse osmosis plants
- Industrial wastewater treatment
- Ultrafiltration and microfiltration facilities
- Biological purification membrane bioreactors
- Gas Separation and Chemical Processing
Hollow fiber membranes made using spinnerets are also used for gas separation, including removal of carbon dioxide, enrichment of nitrogen, and recovery of hydrogen. Permeation through the wall of the fiber selectively allows for efficient separation of different gas molecules.
Applications:
- Gas purification systems
- Air separation units
- Petrochemical process plants
- Textile and Apparel Industry
In fabrics, hollow fiber spinnerets are employed to create light and loose fabrics. They have air in the center of their fibers, which provides insulation and stays soft and flexible. They are employed in sport wear, outdoor wear, and thermal wear.
Applications of textile application:
- Winter jackets for insulation
- Soft and light comforters and blankets
- Sports wear with good ventilation
- Biomedical and Pharmaceutical Applications
The biomedical sector relies strongly on fibers produced with hollow fiber spinnerets. Fibers are utilized as drug delivery systems and medical device scaffolds or carriers. Porosity nature and hollowness provide a medium for cell growth and fluid transport, which is utilized in the healthcare sector.
Examples include:
- Hemodialysis membranes
- Artificial tissue scaffolds and organs
- Controlled drug delivery systems
- Advanced Industrial and Energy Applications
Hollow fibers for fuel cell, battery separator, and gas diffusion layer applications are utilized by industries as well. Permeability and strength of the homogeneous hollow material under restricted conditions ensure that they are well adapted for novel clean energy technology.
Industrial applications include:
- Hydrogen fuel cell systems
- Battery electrolyte separators
- Industrial filtration units
Role of Spinneret Precision in Fiber Quality
The precision of hollow fiber spinneret has a direct effect on the performance of the fiber. Any slight deviation in hole diameter or concentricity would cause wall thickness irregularities and mechanical defects. High-precision machining and surface polishing are therefore essential during manufacturing.
Regular cleaning, inspection, and upkeep of the spinneret also contribute significantly. Over a period of time, clogging by polymer or soil in micro-holes and the phenomenon of unbalanced fiber extrusion occur. Spinners clean spinnerets occasionally through ultrasonic cleaning, chemical immersion, and jet washing under high pressure without harming their fragile structure.
Innovations and Future Trends in Spinneret Technology
New hollow fiber spinneret technology is designed with intentions of increasing the uniformity of fibers, greater production efficiency, and production specifically to meet individual requirements. The multi-layer spinnerets now can produce double or triple-layer composite hollow fibers, with more than one material being used in combination for improved filtration or mechanical characteristics.
Additive manufacturing and 3D printing are also being researched for use in spinneret manufacturing, enabling rapid prototyping and complex internal geometries difficult to machine. In addition, computer-aided simulation packages enable engineers to simulate fluid flow and tailor spinneret geometry before physical manufacture, reducing the cost of trial-and-error.
With the demand for high-performance membranes and advanced fabrics increasing, so will demand for precision-designed hollow fiber spinnerets drive industry towards process control, design, and materials innovation.
Why Hollow Fiber Spinnerets Are So Critical in Contemporary Manufacturing
From membrane treatment of water to the modern textile material, the hollow fiber spinneret still rules all behind-the-scenes forces controlling fiber manufacturing today. Its role in determining fiber geometry, controlling porosity, and offering structural integrity cannot be overstated. All fiber-forming operations — polymer extrusion by solidification rely on the accuracy and durability of the spinneret.
Having the right type of spinneret and maintaining it properly ensures not only consistent fiber quality, but also more efficient processes and lower operating costs. In short, the spinneret is not just a device; it’s the technological heart of the hollow fiber spinning process.
